Spécialiste des caoutchoucs, plastiques techniques, tuyaux flexibles et raccords depuis 1946.

JIC

MALE JIC. Filetage UNF. Cone 74°

AGJ

AGJ_BSB_CAOUTCHOUCS_PLASTIQUES
Ø int tuyau (pouces) Ø int tuyau (DN) Filetage UNF Désignation
3/16 4,8 7/16 S 04,8 MJ 7/16
1/4 6 7/16 S 06 MJ 7/16
1/4 6 1/2 S 06 MJ 1/2
1/4 6 9/16 S 06 MJ 9/16
5/16 8 1/2 S 08 MJ 1/2
5/16 8 9/16 S 08 MJ 9/16
5/16 8 3/4 S 08 MJ 3/4
3/8 10 5/8 S 10 MJ 5/8
3/8 10 9/16 S 10 MJ 9/16
3/8 10 3/4 S 10 MJ 3/4
3/8 10 7/8 S 10 MJ 7/8
1/2 13 3/4 S 13 MJ 3/4
1/2 13 7/8 S 13 MJ 7/8
1/2 13 1" 1/16 S 13 MJ 1" 1/16
5/8 16 7/8 S 16 MJ 7/8
5/8 16 1" 1/16 S 16 MJ 1" 1/16
3/4 19 1" 1/16 S 19 MJ 1" 1/16
3/4 19 1" 3/16 S 19 MJ 1" 3/16
3/4 19 1" 5/16 S 19 MJ 1" 5/16
1 25 1" 5/16 S 25 MJ 1" 5/16
1 25 1" 5/8 S 25 MJ 1" 5/8
1.1/4 32 1" 5/8 S 32 MJ 1" 5/8
1.1/4 32 1" 7/8 S 32 MJ 1" 7/8
1. 1/2 38 1" 7/8 S 38 MJ 1" 7/8
1. 1/2 38 2" 1/2 S 38 MJ 2" 1/2
2 50 2" 1/2 S 50 MJ 2" 1/2

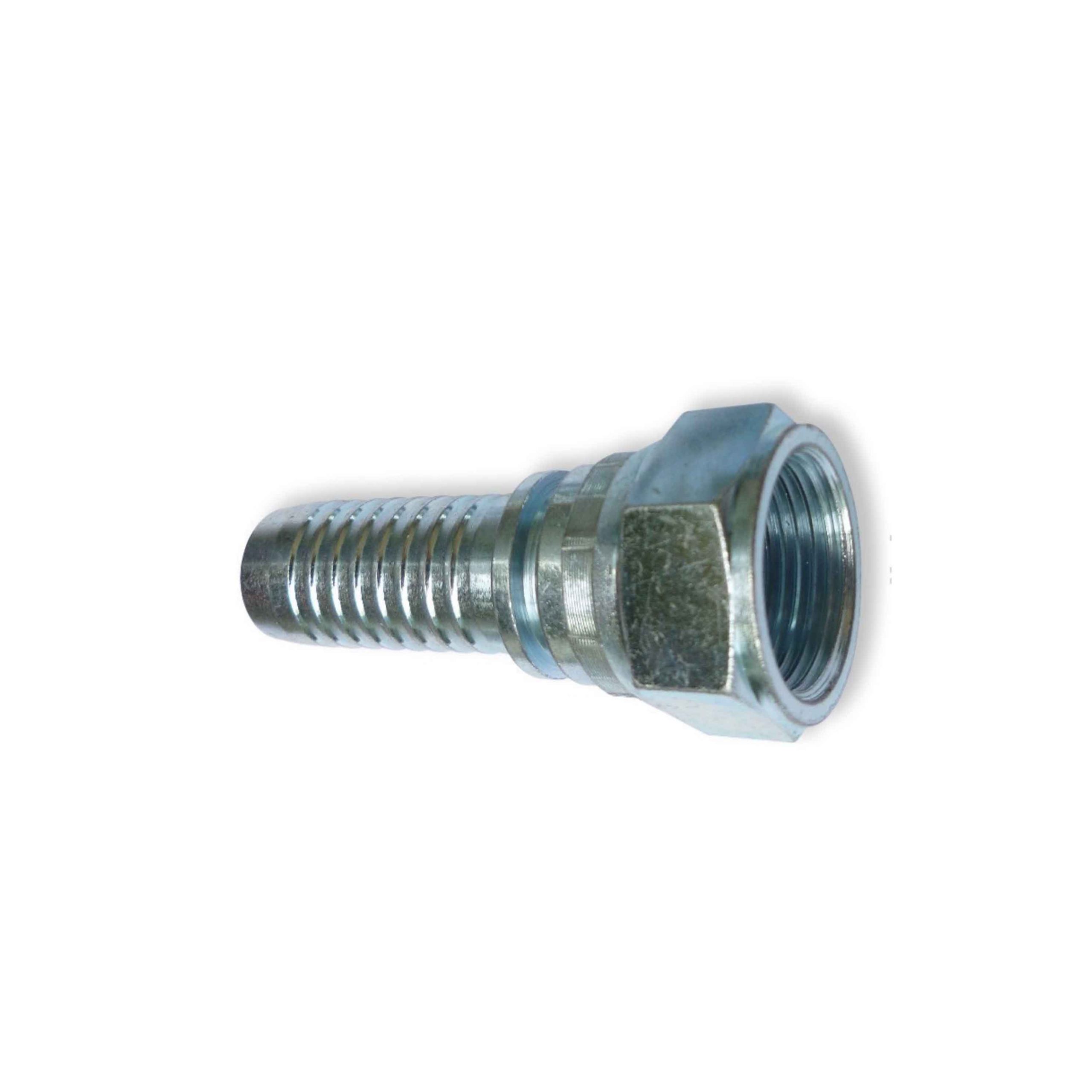

Femelle JIC. Filetage UNF. Cone 74°

DKJ

DKJ_BSB_CAOUTCHOUCS_PLASTIQUES
Ø int tuyau (pouces) Ø int tuyau (DN) Filetage UNF Désignation
3/16 4,8 7/16 S 04,8 TJ 7/16
1/4 6 7/16 S 06 TJ 7/16
1/4 6 1/2 S 06 TJ 1/2
1/4 6 9/16 S 06 TJ 9/16
5/16 8 1/2 S 08 TJ 1/2
5/16 8 9/16 S 08 TJ 9/16
5/16 8 3/4 S 08 TJ 3/4
3/8 10 5/8 S 10 TJ 5/8
3/8 10 9/16 S 10 TJ 9/16
3/8 10 3/4 S 10 TJ 3/4
3/8 10 7/8 S 10 TJ 7/8
1/2 13 3/4 S 13 TJ 3/4
1/2 13 7/8 S 13 TJ 7/8
1/2 13 1" 1/16 S 13 TJ 1" 1/16
5/8 16 7/8 S 16 TJ 7/8
5/8 16 1" 1/16 S 16 TJ 1" 1/16
3/4 19 1" 1/16 S 19 TJ 1" 1/16
3/4 19 1" 3/16 S 19 TJ 1" 3/16
3/4 19 1" 5/16 S 19 TJ 1" 5/16
1 25 1" 1/16 S 25 TJ 1" 1/16
1 25 1" 5/16 S 25 TJ 1" 5/16
1 25 1" 5/8 S 25 TJ 1" 5/8
1.1/4 32 1" 5/8 S 32 TJ 1" 5/8
1.1/4 32 1" 7/8 S 32 TJ 1" 7/8
1. 1/2 38 1" 7/8 S 38 TJ 1" 7/8
1. 1/2 38 2" 1/2 S 38 TJ 2" 1/2
2 50 2" 1/2 S 50 TJ 2" 1/2

Femelle JIC coudée 90°. Filetage UNF. Cone 74°

DKJ 90°

DKJ_90_BSB_CAOUTCHOUCS_PLASTIQUES
Ø int tuyau (pouces) Ø int tuyau (DN) Filetage UNF Désignation
3/16 4,8 7/16 S 04,8 TJ 7/16 90
1/4 6 7/16 S 06 TJ 7/16 90
1/4 6 1/2 S 06 TJ 1/2 90
1/4 6 9/16 S 06 TJ 9/16 90
5/16 8 1/2 S 08 TJ 1/2 90
5/16 8 9/16 S 08 TJ 9/16 90
5/16 8 3/4 S 08 TJ 3/4 90
3/8 10 5/8 S 10 TJ 5/8 90
3/8 10 9/16 S 10 TJ 9/16 90
3/8 10 3/4 S 10 TJ 3/4 90
3/8 10 7/8 S 10 TJ 7/8 90
1/2 13 3/4 S 13 TJ 3/4 90
1/2 13 7/8 S 13 TJ 7/8 90
1/2 13 1" 1/16 S 13 TJ 1" 1/16 90
5/8 16 7/8 S 16 TJ 7/8 90
5/8 16 1" 1/16 S 16 TJ 1" 1/16 90
3/4 19 1" 1/16 S 19 TJ 1" 1/16 90
3/4 19 1" 3/16 S 19 TJ 1" 3/16 90
3/4 19 1" 5/16 S 19 TJ 1" 5/16 90
1 25 1" 1/16 S 25 TJ 1" 1/16 90
1 25 1" 5/16 S 25 TJ 1" 5/16 90
1 25 1" 5/8 S 25 TJ 1" 5/8 90
1.1/4 32 1" 5/8 S 32 TJ 1" 5/8 90
1. 1/2 38 1" 7/8 S 38 TJ 1" 7/8 90
2 50 2" 1/2 S 50 TJ 2" 1/2 90

Femelle JIC coudée 45°. Filetage UNF. Cone 74°

DKJ 45°

DKJ_45_BSB_CAOUTCHOUCS_PLASTIQUES
Ø int tuyau (pouces) Ø int tuyau (DN) Filetage UNF Désignation
3/16 4,8 7/16 S 04,8 TJ 7/16 45
1/4 6 7/16 S 06 TJ 7/16 45
1/4 6 1/2 S 06 TJ 1/2 45
1/4 6 9/16 S 06 TJ 9/16 45
5/16 8 1/2 S 08 TJ 1/2 45
5/16 8 9/16 S 08 TJ 9/16 45
5/16 8 3/4 S 08 TJ 3/4 45
3/8 10 5/8 S 10 TJ 5/8 45
3/8 10 9/16 S 10 TJ 9/16 45
3/8 10 3/4 S 10 TJ 3/4 45
3/8 10 7/8 S 10 TJ 7/8 45
1/2 13 3/4 S 13 TJ 3/4 45
1/2 13 7/8 S 13 TJ 7/8 45
1/2 13 1" 1/16 S 13 TJ 1" 1/16 45
5/8 16 7/8 S 16 TJ 7/8 45
5/8 16 1" 1/16 S 16 TJ 1" 1/16 45
3/4 19 1" 1/16 S 19 TJ 1" 1/16 45
3/4 19 1" 3/16 S 19 TJ 1" 3/16 45
3/4 19 1" 5/16 S 19 TJ 1" 5/16 45
1 25 1" 1/16 S 25 TJ 1" 1/16 45
1 25 1" 5/16 S 25 TJ 1" 5/16 45
1 25 1" 5/8 S 25 TJ 1" 5/8 45
1.1/4 32 1" 5/8 S 32 TJ 1" 5/8 45
1. 1/2 38 1" 7/8 S 38 TJ 1" 7/8 45
2 50 2" 1/2 S 50 TJ 2" 1/2 45
